SCULPdot

Versatile spotlight for accent and architectural lighting

Description

Designed to enhance architectural detail, sculptures and other features, the SCULPdot is a useful tool for a careful lighting design, especially in combination with SCULPflood luminaires.
Compact and elegant, the SCULPdot is designed with no visible screws on the front of the frame to maintain the aesthetics. The floodlight combines multi-die technology and special lenses for a perfect colour mix.
SCULPdot is composed of a die-cast aluminium body and a protector in tempered glass or polycarbonate.
Thanks to an external refractor, the beam can be easily adapted on-site. In addition, the associated bracket offers a degree angle indication system allowing for precise adjustment. All these features ease the fine-tuning of the installation for an optimal final result.

Reveal the true beauty of your architecture

The SCULPdot ground lighting solution has been developed to enhance architectural details and landscape elements.
This floodlight combines multi-die technology and special lenses for even whites and perfect colour mix (monochromatic, RGBW, RGBA and tunable white), for an optimal result that highlights the architectural splendour of your monuments, sculptures and edifices.

Dynamic lighting scenarios

The digital era of architectural lighting has opened up an infinite universe of creative opportunities. SCULPdot can create numerous dynamic effects with control systems adjusting the intensity of the colours or the light colours emitted to create special ambiances or light shows for celebrations.

Flexible mounting

SCULPdot comes with an integrated driver. However, as an option, the driver and the power supply can be installed remotely, enabling more flexible mounting options to satisfy specific constraints (such as high ambient temperatures).

Maintaining performance and robustness

The long life span of the LEDs and the robust materials (aluminium and glass), ensure that the photometric and mechanical performance are maintained over time.

Characteristics

General Information

Recommanded installation height (m)
10.0
Compliance

Electrical information

Electrical class
Nominal voltage
Power factor (at full load)
0.90
Surge protection (kV)
10
Control protocol(s)
Control option(s)
Associated control system(s)

Performance

Luminaire output flux (lm)
559 -
2776
Power consumption (W)
21.0 -
35.0
Luminaire efficacy - up to (lm/W)
79

Optical information

Colour rendering index (CRI)
0
70
80

Housing and finish

Housing
Aluminium
Protector
Polycarbonate
Tightness level
Impact resistance
IK may be different according to the size/configurations. Please consult us.

Lifetime

All configurations

Dimensions and mounting

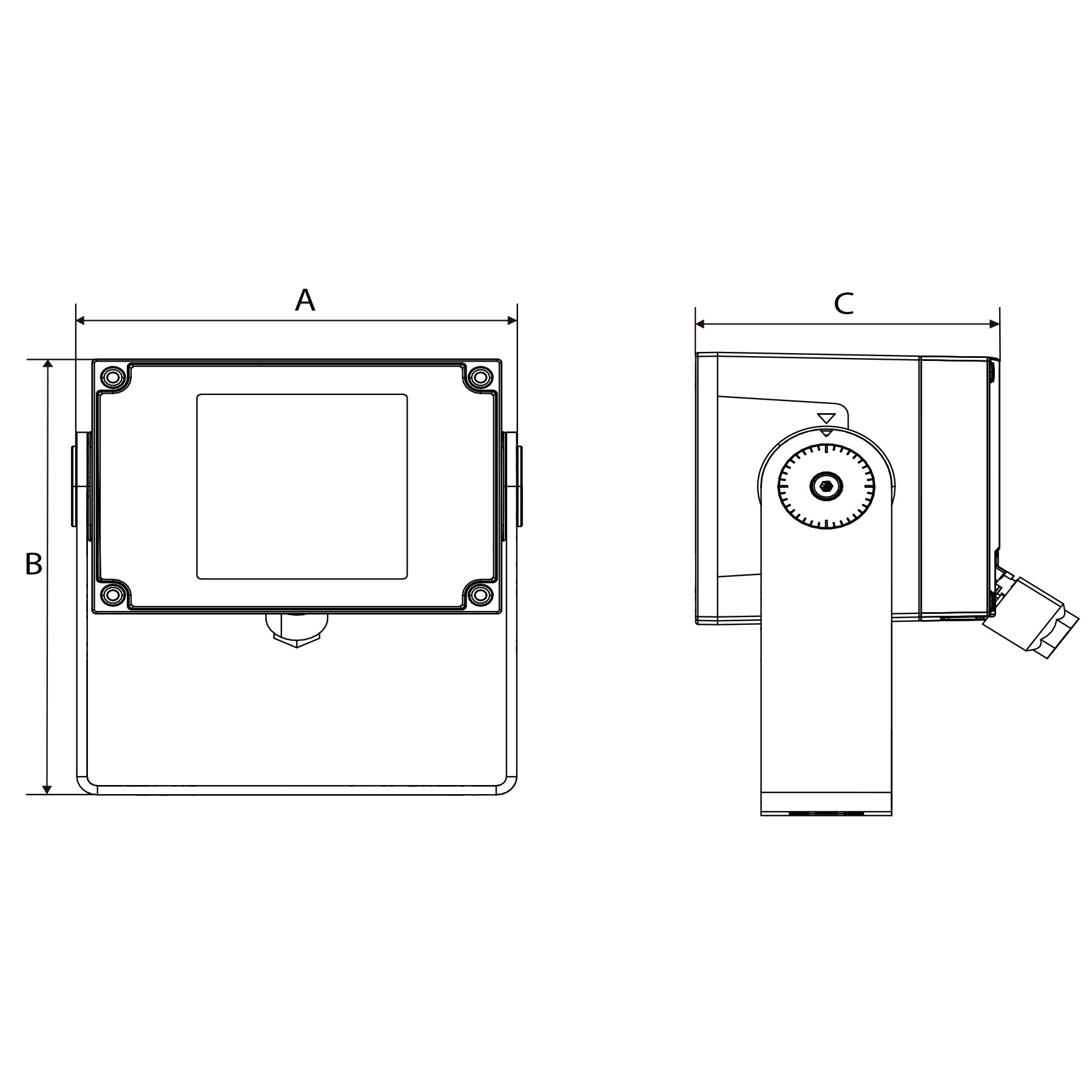

AxBxC (mm | inch)
140x240x199 | 5.5x9.4x7.8
Weight (kg | lbs)
7.0 | 15.4

Control systems

Control options for SCULPdot

The SCULPdot accent and architectural lighting solution offers the following control options:
• DMX-RDM
• DALI

To offer full scope solutions that enable elaborate and attractive scenarios to be created, SCULPdot provides the perfect combination of state-of-the-art LED spotlights and leading-edge control systems.

Installation and Maintenance

Flexible mounting options

Thanks to quick connectors, connections can be made without the need for stripping or special tools. The inclination angle - indicated on bracket of SCULPdot - can be adjusted in function of the needs of your project.
Thanks to an external refractor, the beam can be easily adapted on-site. These features ease the fine-tuning of the installation and contribute to an optimal result.

Accessories and versions

SCULPdot accessories

SCULPdot is available with various accessories including protection grids, barn doors and horizontal or vertical louvers.
