IZYLUM NEO

A New Benchmark in Road Lighting Excellence

Description

Building on the proven legacy of the IZYLUM range and decades of expertise in public lighting, IZYLUM NEO is the next generation of road luminaires, designed to meet the needs of modern infrastructures.
With a focus on energy performance, user-friendly design and long-term durability, it delivers a smarter, more sustainable approach to road and urban illumination.
IZYLYM NEO delivers a highly powerful solution you can tailor to your project specification while improving road lighting experience, simplifying operation and reducing your environmental footprint.

Maximum performance, minimum energy usage

What if your lighting could actually reduce your energy costs? IZYLUM NEO is available in two sizes and benefits from flexible photometric platforms, delivering tailored illumination while maximising energy efficiency. This great versatility helps reduce power consumption and total cost of ownership while meeting your exact illumination needs.

Fits any road, speaks every smart-city language

Thanks to its compatibility with industry-standard remote management protocols such as NEMA and Zhaga-D4i, IZYLUM NEO plugs straight into your existing lighting control system. Adding optional sensors takes seconds, with no special tools and zero downtime.

The highest user-friendliness

IZYLUM NEO facilitates and improves the lighting experience, even during installation. With an optimised design, versatile post-top or side-entry mounting with built-in tilt adjustment and tool-free access to the gear compartment, this luminaire is designed for easiness and intuitive use.

Designed for minimal environmental impact

IZYLUM NEO benefits from a compact, robust, fully recyclable housing. Its lightweight, optimised design offers quicker, safer handling on site, while lowering its carbon footprint for minimal impact on the environment.

Lighting flexibility that fits your needs

The IZYLUM NEO luminaires adapt effortlessly to every road and urban lighting project. With a wide range of photometric distributions and built-in compatibility with any remote lighting networks, it offers total flexibility in tailoring the most appropriate lighting solution for your city streets.
Its optic technology offers pinpoint accuracy, making it a valuable asset for busy environments. It enables perfectly targeted illumination while respecting the surroundings and complying with the strictest standards.
Whether you're updating existing infrastructure or planning new developments, IZYLUM NEO ensures precision lighting where it's needed.

A sustainable choice from design to lighting

Designed with sustainability at its core, IZYLUM NEO features a compact, fully recyclable body made from high-recyclable aluminium. Its lightweight construction reduces transport emissions, while its energy-efficient performance and long product lifespan minimise both operational impact and waste. From manufacturing to installation, every aspect of IZYLUM NEO supports your sustainability goals.

Characteristics

General Information

Compliance

CE mark

ENEC certified

ENEC+ certified

Zhaga-D4i certified

Electrical information

Electrical class

Class I EU

Class II EU

Nominal voltage

220-240V – 50-60Hz

Surge protection (kV)

Control protocol(s)

DALI

1-10V

Control option(s)

Remote management

Custom dimming profile

AmpDim

Bi-power

Performance

Luminaire output flux (lmm)

600 -

22700

Power consumption (W)

10.0 -

154.0

Luminaire efficacy - up to (lm/W)

177

Optical information

LED colour temperature

Warm White 722

Warm White 727

Warm White 730

Warm White 830

Neutral White 740

Colour rendering index (CRI)

Upward Light Output Ratio (ULOR)

ULR

ULOR may be different according to the configuration. Please consult us.

ULR may be different according to the configuration. Please consult us.

Housing and finish

Housing

Aluminium

Optic

PMMA

Protector

Tempered glass

Tightness level

IP 66

Impact resistance

IK 10

Access for maintenance

Tool-less access to gear compartment

Lifetime

All configurations

100,000h - L95

Lifetime may be different according to the size/configurations. Please consult us.

Dimension and mounting

Dimensions and mounting

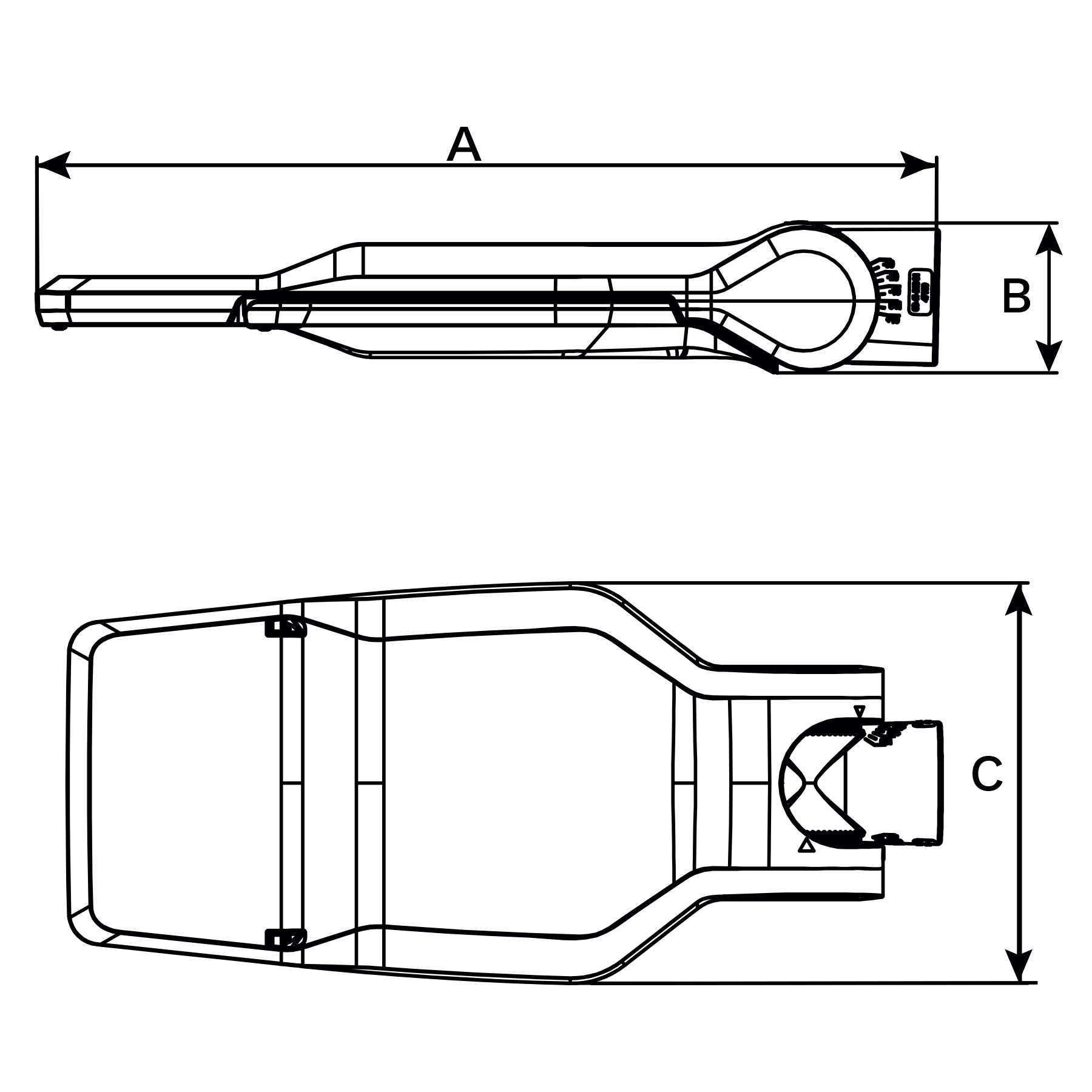

AxBxC (mm | inch)

IZYLUM NEO 1 : 560x94x258 | 22.0x3.7x10.2

IZYLUM NEO 2 : 652x94x258 | 25.7x3.7x10.2

Weight (kg | lbs)

IZYLUM NEO 1 : 4.5-5.5 | 9.9-12.1

IZYLUM NEO 2 : 5.3-6.3 | 11.7-13.9

Mounting possibilities

Side-entry slip-over – Ø42mm

Side-entry slip-over – Ø60mm

Side-entry slip-over – Ø32mm

Side-entry slip-over – Ø48mm

Post-top slip-over – Ø76mm

Post-top slip-over – Ø48mm

Side-entry slip-over – Ø76mm

Post-top slip-over – Ø32mm

Post-top slip-over – Ø42mm

Post-top slip-over – Ø60mm

Download all specs

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Discover Schréder EXEDRA

Control systems

IZYLUM NEO options

IZYLUM NEO is available with the following control and dimming options:
• Custom dimming profile
• 1 - 10V
• DALI
• Bi-power
• AmpDim
• Remote management

As an option, these road luminaires can be equipped with a standard NEMA 7-pin or a Zhaga socket. Optional sensors can be also added for light-on-demand scenarios.

Control link

All Control Options

View online

Create the perfect harmony with our poles and brackets

Our diverse selection ensures the perfect match for Schréder luminaires, enabling you to tailor your ensemble to the unique needs of your project. From sleek modern designs to classic styles, our poles and brackets offer a wide range of options. Choose Schréder for a harmonious blend of form and function, creating lighting solutions that stand out and enhance any urban landscape.

Check your options

Installation and Maintenance

IzyFix: the most versatile mounting

The IZYLUM NEO luminaires benefit from the second generation of the IzyFix universal fixation system. Adapted to post-top and side-entry mounting on any spigot (Ø32mm, Ø42-48mm, Ø60mm and Ø76mm), IzyFix enables switching from one position to another at any time, without removing the luminaire from the pole. This unique feature eases installation and offers complete versatility for pole and bracket configurations.

Maintenance made simple
