TECEO

Enhance your environment with the leading LED street lighting solution chosen by thousands of cities worldwide

Description

TECEO transforms your lighting from a necessary expense into an asset. This constantly evolving range of outdoor LED lighting solutions has been designed to minimise the total cost of ownership in various environments from motorways and car parks to bike paths and all types of roads and streets.
This very successful luminaire already enables thousands of cities and businesses to improve their lighting levels, generate energy savings and reduce their ecological footprint.
TECEO is recognised by many independent bodies as a leading LED lighting solution that stands out in terms of efficiency, versatility and connectivity. Invest now in a bright future with this state-of-the-art, robust and smart city ready street luminaire!

  • Design consistency for a broad range of applications
  • Thanks to its three sizes, the TECEO range can meet all the different lighting needs of a city. TECEO S has been designed for low-height applications such as residential streets, car parks and bike paths. TECEO 1 is ideally suited to lighting urban roads and squares while TECEO 2 is perfect for large roads, avenues and motorways.

  • Easy to combine with most poles and brackets
  • The complete TECEO range is available with universal reversible fixation parts (for spigots from Ø32 to Ø76) adapted for post-top and side-entry mounting, ensuring compatibility with most poles and brackets. The inclination angle can be adjusted on-site for both post-top (0 to +15°) and side-entry (0 to -15°) configurations. As an option, TECEO can be delivered pre-cabled.

  • Environmental-friendly street lighting
  • In addition to using sustainable and recyclable materials, TECEO minimises waste to support circular economy thanks to its 3 sizes that provide the most appropriate solution with the lowest quantity of raw materials. As it is designed with the FutureProof concept, TECEO provides an easy access to internal components for upgrades. It is also dark sky compliant, generating no up-light (0% ULOR).

  • Smart city-ready street luminaire
  • The TECEO offers not just one but two connectivity options based on industry standards. To remain as open and interoperable as possible, the TECEO is available with NEMA or Zhaga sockets and complies with the ZD4i standard. The TECEO control options enable you to connect your lighting scheme and to be smart city-ready.

The outdoor lighting solution for an optimised total cost of ownership (TCO)

Thanks to its photometrical performance, its state-of-the-art LED technology and its long lifespan, TECEO reduces the total cost of ownership (TCO). It maximises energy savings and does not require any specific maintenance throughout its whole lifecycle. Designed to offer a high ingress protection for internal components and a strong impact resistance, this road luminaire can withstand strong winds and vibrations. TECEO is an unrivalled solution thanks to its sustainable lighting, easy maintenance and high performance over time.

Smart features enabling adaptive lighting scenarios

With its control options and its optional integrated PIR sensors (3 types of detection patterns), TECEO can provide light-on-demand scenarios. It can also connect to all types of external sensors to trigger various lighting levels that meet the exact needs of users in a dedicated place and at a specific time. This flexibility leads to maximum safety and comfort for end-users with minimal energy consumption. Connect your lighting scheme and be smart city-ready with the TECEO.

Get your starlit sky back

The International Dark-Sky Association (IDA) is the recognised authority on light pollution. It provides tools, ressources, and a certification program for industries and companies willing to reduce light pollution. At Schréder, we are convinced that a more responsible lighting has the potential to preserve the environment. We are fully committed to reducing light pollution by joining the IDA’s certification program. Our approved range of luminaires complies with the IDA’s program of approval to deliver a light that protects the environment in all respects. Get your starlit sky back with the TECEO lighting solutions.

Characteristics

Surge protection (kV)
10
6
Control protocol(s)
Associated control system(s)
Sensor(s)
Luminaire output flux (lm)
600 -
44500
Power consumption (W)
7.0 -
320.0
Luminaire efficacy - up to (lm/W)
187
Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult us.
ULR may be different according to the configuration. Please consult us.
Meets IDA Dark Sky requirements when fitted with LEDs of 3000K or less.
Housing
Aluminium
Optic
Protector
Tempered glass
Finish
Polyester powder coating
Standard colour
Tightness level
Impact resistance
Any other RAL or AKZO colour upon request
All configurations
Lifetime may be different according to the size/configurations. Please consult us.
Operating temperature range (Ta)
-40°C up to +55°C / -40°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

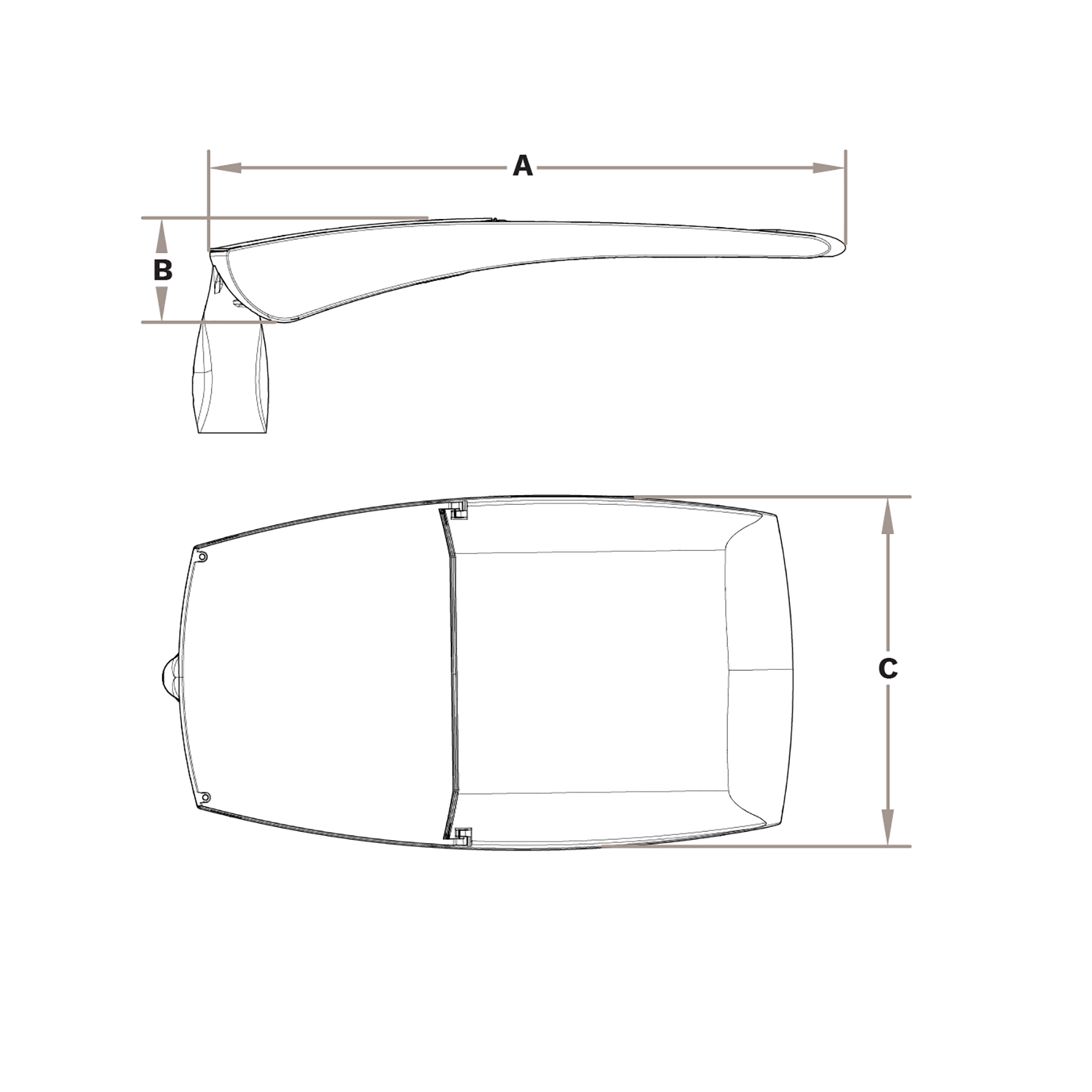

Dimensions and mounting

AxBxC (mm | inch)
TECEO S : 450x99x252 | 17.7x3.9x9.9
TECEO GEN2 1 : 580x107x310 | 22.8x4.2x12.2
TECEO GEN2 2 : 740x118x427 | 29.1x4.6x16.8
Weight (kg | lbs)
TECEO S : 5.1 | 11.2
TECEO GEN2 1 : 7.9 | 17.4
TECEO GEN2 2 : 14.2 | 31.2
Mounting possibilities
Post-top penetrating – Ø60mm
Side-entry slip-over – Ø42mm
Post-top slip-over – Ø76mm
Side-entry slip-over – Ø32mm
Side-entry slip-over – Ø60mm
Side-entry slip-over – Ø76mm
Post-top slip-over – Ø60mm
Post-top slip-over – Ø48mm
Post-top slip-over – Ø32mm
Side-entry slip-over – Ø48mm
Side-entry penetrating – Ø60mm
Post-top slip-over – Ø42mm

Video file

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Control systems

Control options for TECEO

The following dimming options are possible for the TECEO street luminaires:
• Bi-power
• Custom dimming profile
• 1 - 10V
• DALI
• Remote management
• AmpDim

As an option, this outdoor LED luminaire can be equipped with a standard NEMA 7-pin receptacle or with a Zhaga socket, enabling an easy access to the digital era of lighting with advanced lighting features that plan, monitor and control outdoor lighting networks.

Control link

Create the perfect harmony with our poles and brackets

Our diverse selection ensures the perfect match for Schréder luminaires, enabling you to tailor your ensemble to the unique needs of your project. From sleek modern designs to classic styles, our poles and brackets offer a wide range of options. Choose Schréder for a harmonious blend of form and function, creating lighting solutions that stand out and enhance any urban landscape.

Check your options

Installation and Maintenance

Standard mounting

The complete range is available with three different universal fixation parts adapted for post-top and side-entry mounting on various spigots (Ø32mm with adapter, Ø42-48mm, Ø60mm and Ø76mm). The inclination angle can be adjusted on-site for both post-top (0 to +15°) and side-entry (0 to -15°) mounting in 5° steps.

Penetrating Ø60mm spigot

The TECEO is available with a dedicated penetrating fixing part designed for a Ø60mm tube.

Poles and Brackets

ELAYA, contemporary elegance

The complete range of ELAYA rear and wall brackets offers modern and elegant combinations with TECEO. As an option, the largest ELAYA brackets can be equipped with a static low-power LED for accent lighting to create a distinctive identity.

ITO, function meets design

Perfectly coordinated with the slender design of TECEO, the ITO range of poles and brackets offers an aesthetically consistent approach in various environments, from urban streets to large boulevards, car parks and residential districts.
