SHUFFLE post-top

An elegant design for a pleasant atmosphere

Description

Do you want to enjoy a cost-effective LED lighting with a modern design? Shuffle post-top is designed to meet this challenge!
Creating an enjoyable landscape is a key element for public places like residential streets, urban roads, squares and parks. The minimalist Shuffle post-top provides an elegant and timeless lighting solution for these spaces. With its cylinder shape, this street light luminaire is the perfect addition to the Shuffle smart pole to create pleasant places where people like to spend time.

Create ambiance and a distinctive identity for your city

By fitting the Shuffle post-top with a coloured light ring, you can create a special identity for your outdoor spaces. Available with red, blue, green, warm or neutral white LEDs, this light ring can be placed under the 360° lighting module to create a pleasant atmosphere for places like squares and pedestrian areas, urban roads and streets, bridges, parks, bicycle paths, residential streets and car parks.

Designed to fit your environment

The Shuffle post-top luminaire is available as a smooth cylinder or with a large canopy. You can choose between a modern and aesthetic version and a more decorative and romantic variant to create a pleasant atmosphere in public areas.

Connected-ready

Shuffle post-top can be operated by Owlet controls in a stand-alone, autonomous and interoperable network. For your future smart city requirements, it is important that your different services can interconnect. Shuffle post-top can be equipped with a standard Nema 7-pin socket.

Supporting your sustainable policy

Shuffle post-top has been developed to minimise waste. Each part of this street lighting luminaire can be recycled to support a circular economy. Equipped with state-of-the-art LED technology, Shuffle post-top ensures the highest efficiency to provide energy savings for your city.

The perfect combination

Shuffle post-top offers the same design and lighting characteristics as the 360° light module of the Shuffle smart column. Shuffle post-top benefits from a wide range of photometries and provides aesthetic consistency in environments lit by both the post-top and column versions of the Shuffle.

Characteristics

General Information

Recommended installation height (m)
3.0 -
6.0

Electrical information

Electrical class
Surge protection (kV)
10
20
Control protocol(s)
Socket option(s)
Associated control system(s)

Performance

Luminaire output flux (lm)
1700 -
5100
Power consumption (W)
25.2 -
48.0
Luminaire efficacy - up to (lm/W)
124

Optical information

LED colour temperature
Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%

Housing and finish

Housing
Aluminium
Optic
Protector
Polycarbonate
Tightness level
Impact resistance

Lifetime

All configurations

Dimensions and mounting

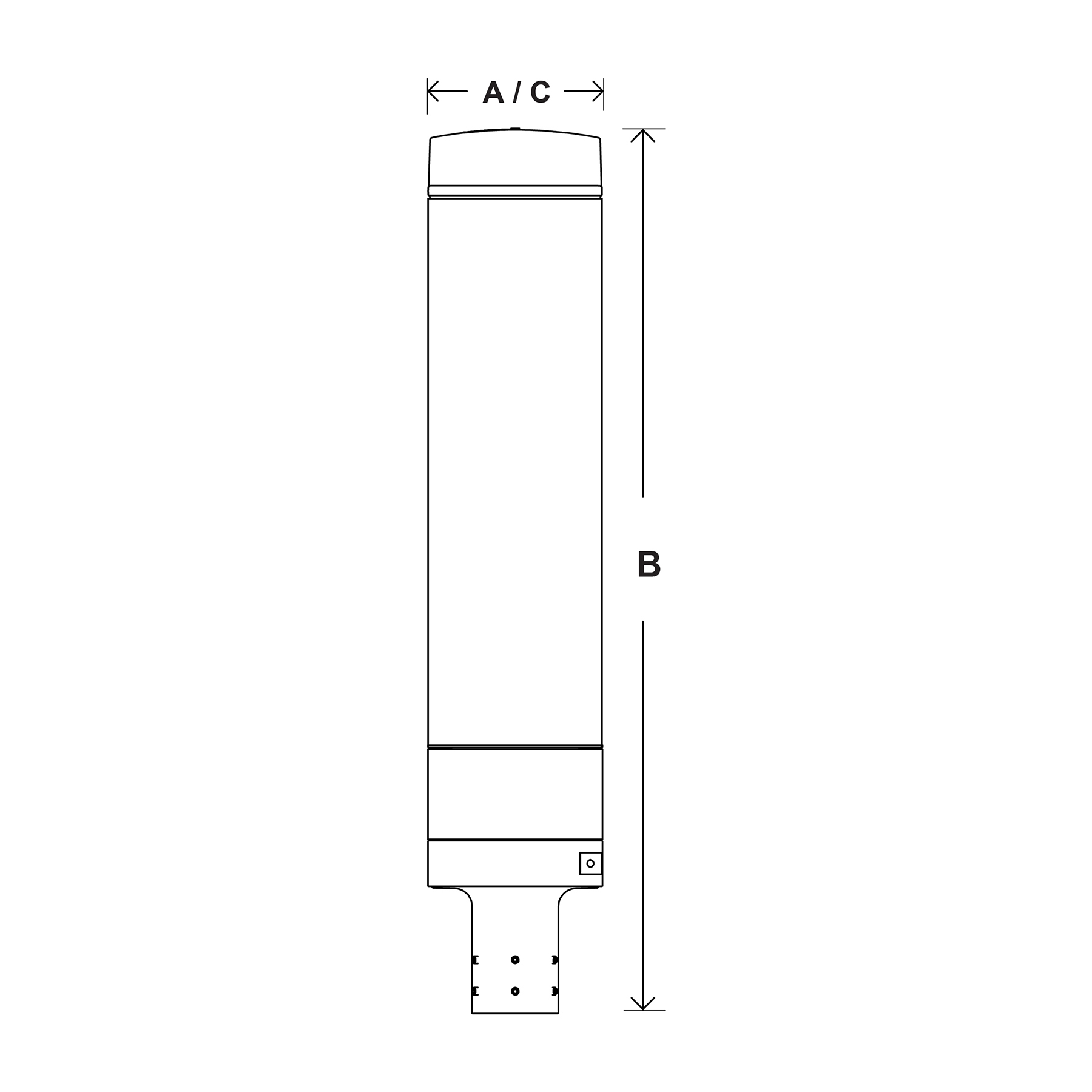

AxBxC (mm | inch)
194x816x194 | 7.6x32.1x7.6
Weight (kg | lbs)
8.0 | 17.6
Mounting possibilities
Post-top slip-over – Ø60mm
Post-top slip-over – Ø76mm

Control systems

Control options for Shuffle post-top

Shuffle post-top offers various dimming options :
• Custom Dimming Profile
• Bi-Power
• 1 - 10V
• DALI
• Remote management

Installation and Maintenance

Easy installation

Shuffle post-top comes with a slip-over mounting for a vertical mast with a Ø76mm or Ø60mm diameter spigot. To facilitate installation, this street lighting luminaire is delivered pre-wired.
