MILANEO

The Art of Light, Redefined

Description

Rooted in the pure lines of industrial design, MILANEO redefines urban lighting with an innovative blend of minimalist elegance and functional performance. Its timeless silhouette offers a contemporary reinterpretation of the classic street lantern, harmoniously integrating into the urban landscape.
Beneath its refined form, MILANEO integrates advanced, connected lighting technology, delivering high-performance illumination while saving energy resources. Designed with sustainability in mind, the luminaire minimises light pollution and supports environmentally responsible urban development.
MILANEO invites cities to rethink how light can shape atmosphere and support identity — bridging design and innovation for the streets of tomorrow.

A new standard in decorative lighting

MILANEO stands at the intersection of industrial purity and contemporary aesthetics. It subtly enhances the atmosphere of urban spaces. Whether in a heritage district or a modern development, MILANEO adapts to the context, helping shape unique and welcoming urban landscapes.

Connected urban lighting

Featuring the latest connectivity technologies, MILANEO supports remote management and adaptive lighting scenarios, enabling cities to improve operational control while reducing their costs. This Zhaga-D4i certified luminaire ensures seamless compatibility into your city’s existing systems.

Sustainability-driven

MILANEO has been designed with sustainability in mind. From its conception to its optimised energy use and light distributions, it fully respects the urban ecosystem. By limiting light pollution and supporting the principles of dark skies, MILANEO contributes to more sustainable, future-orientated cities.

High-performance, flexible luminaire

Equipped with advanced LED and optic engines, MILANEO ensures optimal light distribution and energy efficiency. Its photometric versatility enables it to adapt to various urban applications, from city streets to public squares and promenades.

A Red Dot Award-winning luminaire

MILANEO has been recognised with the prestigious Red Dot Design Award – one of the world’s largest and most renowned design competitions, which celebrates excellence in design and innovation. Those values lie at the very heart of the MILANEO’s concept. The luminaire creates the perfect dialogue between design excellence and technology within the public space. Its aesthetics support the identity and attractiveness of urban environments, creating places where people feel connected and inspired. At the same time, its advanced lighting technology ensures optimal performance and energy savings, with respect for the environment.
By integrating form and function, MILANEO empowers cities to offer more than just illumination – it helps create vibrant, sustainable and resilient public spaces.

Tailor your own urban environment

Combined with a range of poles and brackets, MILANEO offers the opportunity to create tailored environments to support the identity of each your city spaces. Be inspired by our range of poles and brackets, and let your creativity speak for itself.

Characteristics

General Information

Recommended installation height (m)

5.0 -

10.0

Compliance

CE mark

ENEC certified

ENEC+ certified

Zhaga-D4i certified

UKCA marking

Electrical information

Electrical class

Class I EU

Class II EU

Nominal voltage

220-240V – 50-60Hz

Control protocol(s)

1-10V

DALI

Control option(s)

Bi-power

Custom dimming profile

AmpDim

Remote management

Socket option(s)

Zhaga (optional)

NEMA 7-pin (optional)

Associated control system(s)

Schréder EXEDRA

Sensor(s)

PIR (optional)

Performance

Luminaire output flux (lmm)

600 -

7700

Power consumption (W)

7.0 -

56.0

Luminaire efficacy - up to (lm/W)

169

Optical information

LED colour temperature

Warm White 722

Warm White 727

Warm White 730

Warm White 830

Neutral White 740

Colour rendering index (CRI)

Upward Light Output Ratio (ULOR)

ULR

ULR may be different according to the configuration. Please consult us.

ULOR may be different according to the configuration. Please consult us.

Housing and finish

Housing

Aluminium

Optic

PMMA

Protector

PMMA

Tightness level

IP 66

Impact resistance

IK 06

Dimension and mounting

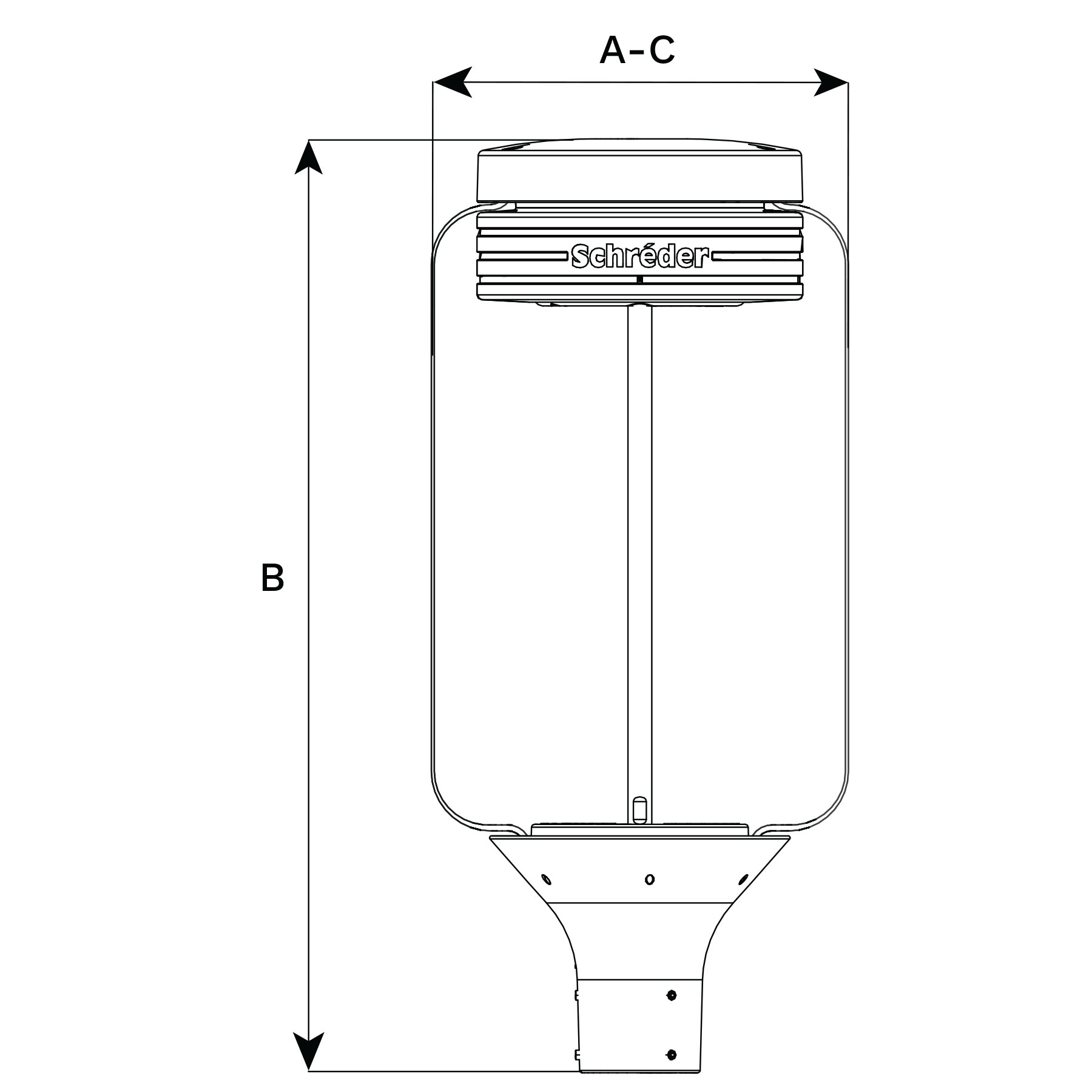

Dimensions and mounting

AxBxC (mm | inch)

350x784x350 | 13.8x30.9x13.8

Weight (kg | lbs)

9.9 | 21.8

Mounting possibilities

Suspended 1’’ 1/4 gas male

Suspended 1’’ gas male

Suspended 1’’ gas female

Suspended ¾’’ gas male

Post-top slip-over – Ø76mm

Download all specs

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Discover Schréder EXEDRA

Control systems

Options for MILANEO

MILANEO is available with the following options:
• 1-10V
• DALI
• Custom dimming profile
• AmpDim
• Bi-power
• Remote management

Additionally, MILANEO can be equipped with a NEMA or a Zhaga socket, enabling seamless integration with remote lighting management systems. In the post-top version, a second Zhaga socket can be added to the fixation base to combine it with motion sensor features, allowing light-on-demand scenarios.

Control link

All Control Options

View online

Create the perfect harmony with our poles and brackets

Our diverse selection ensures the perfect match for Schréder luminaires, enabling you to tailor your ensemble to the unique needs of your project. From sleek modern designs to classic styles, our poles and brackets offer a wide range of options. Choose Schréder for a harmonious blend of form and function, creating lighting solutions that stand out and enhance any urban landscape.

Check your options

Installation and Maintenance

Post-top mounting

MILANEO can be mounted post-top on Ø76mm spigots. To facilitate installation, the luminaire is delivered pre-cabled.

Suspended version

The MILANEO’s suspended version is available with various types of fixation to adapt to different spigots:
• Male 1”
• Male 1” ¼
• Male ¾
• Female 1” gas
