DEXO

Efficient catenary LED lighting solution for cities

Description

Dexo is a high performance LED luminaire for suspended catenary mounting, with an elegant designed by Thomas Coulbeaut. Dexo provides a quality light and visual comfort to enhance safety in towns and cities. The Dexo catenary luminaire integrates the latest cutting-edge technologies. It maximises energy and maintenance savings with performing symmetrical light distributions. The combination of LED technology and dimming possibilities makes it possible to achieve high energy savings compared with luminaires equipped with traditional light sources. This outdoor catenary luminaire meets the requirements of numerous applications including tramway areas, railway stations, narrow roads, pedestrian streets and other places where poles cannot be installed. Dexo is ready for your future Smart City projects, as it is designed to incorporate the Owlet range of control solutions.

Versatile mounting to suit your needs

Dexo can be equipped with its suspension in transversal or axial orientation to meet the requirements of the place to be lit.

High-quality materials

The body and mounting pieces are composed of corrosion-free die-cast aluminium protected by a powder-coating paint. The flat protector is made of tempered safety glass.

Easy access

Dexo is a LED luminaire dedicated to suspended mounting. It provides an easy access to the driver and optical compartment to facilitate maintenance.

Create welcoming places

By decluttering areas where space is very limited and offering a uniform and comfortable lighting, Dexo ensures that they are more welcoming, accessible and safe.

A sustainable choice

In line with circular economy principles, Dexo is FutureProof. Both the LED unit and the electronic components can be easily replaced to take advantage of any future technological developments and to extend the life span of the luminaire. Thanks to resistant and recyclable materials, Dexo is a perfect tool for improving safety and comfort, while reducing the carbon footprint.

Characteristics

General Information

Recommended installation height (m)

4.0 -

10.0

Compliance

CE mark

ENEC certified

Electrical information

Electrical class

Class I EU

Class II EU

Nominal voltage

220-240V – 50-60Hz

Surge protection (kV)

Control option(s)

Bi-power

Custom dimming profile

Remote management

Associated control system(s)

Owlet Nightshift

Performance

Luminaire output flux (lmm)

3800 -

12700

Power consumption (W)

34.6 -

96.0

Luminaire efficacy - up to (lm/W)

142

Optical information

LED colour temperature

Neutral White 740

Warm White 730

Colour rendering index (CRI)

Upward Light Output Ratio (ULOR)

Housing and finish

Housing

Aluminium

Optic

PMMA

Protector

Tempered glass

Finish

Polyester powder coating

Standard colour

AKZO grey 150 sanded

Tightness level

IP 66

Impact resistance

IK 08

IK may be different according to the size/configurations. Please consult us.

Lifetime

All configurations

100,000h - L90

Operating conditions

Operating temperature range (Ta)

-30 °C up to +50 °C / -22 °F up to 122 °F with wind effect

Depending on the luminaire configuration. For more details, please contact us.

Dimension and mounting

Dimensions and mounting

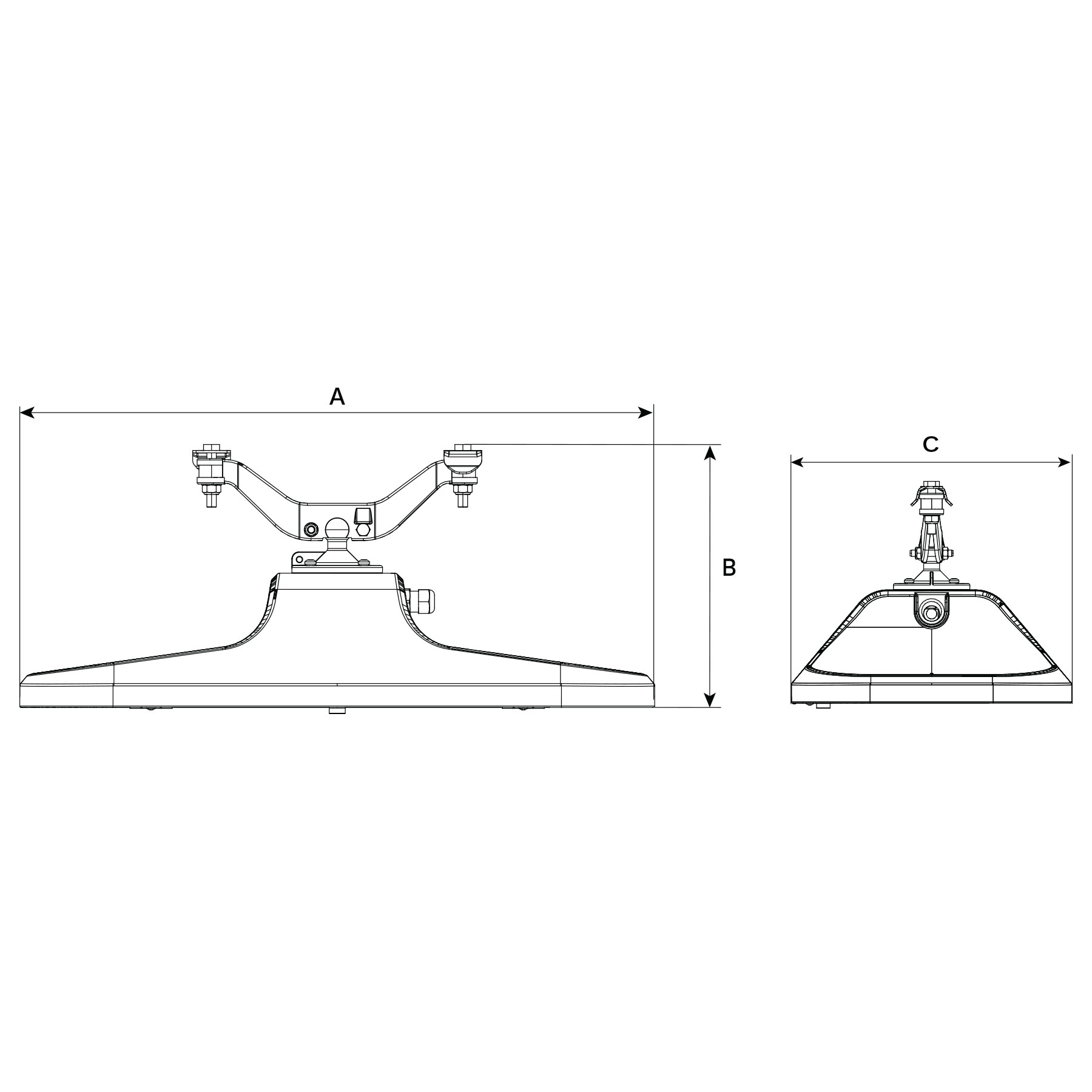

AxBxC (mm | inch)

672x196x352 | 26.5x7.7x13.9

Weight (kg | lbs)

11.5 | 25.3

Mounting possibilities

Catenary

Download all specs

Control systems

Control options for Dexo

The Dexo catenary lighting solution is available with the following dimming options:
· Bi-Power
· Custom Dimming Profile
· Constant light output
· Remote management Dexo is ready for your future Smart City requirements.

Thanks to dimming features, light-on-demand options and bi-directional communication, the Owlet control solutions allow you to save energy, to provide light only when and where it is required and to optimise the operational management of your lighting scheme in terms of costs and services.

Control link

All Control Options

Installation and Maintenance

Standard fixation

Dexo is available with a standard fixation on a rope with a diameter from 4mm to 12mm with a possible rotation of 90° and a tilt angle of up to 15°. As an option, this suspended luminaire can have a fixation with an external electrical connection.

Easy access for maintenance

Dexo provides easy access to the driver and optical compartment to facilitate maintenance on-site. Thanks to a snap-in mechanism, the gear-tray is automatically disconnected from the LED modules and mains upon opening (only available for class II as an option).
Dexo is FutureProof. Both the LED unit and the electronic assembly can be replaced to take advantage of any future technological developments.
