CITEA

Timeless urban luminaire blending circular design with exceptional performance

Description

Designed for long-term performance and operational efficiency, CITEA combines high photometric performance, design flexibility and sustainable value.
Built around a standardised, tool-free, interchangeable architecture, CITEA simplifies maintenance operations, optimises spare part management and significantly reduces total cost of ownership across the lighting network.
Delivering high lumen packages with excellent efficacy, CITEA ensures high-quality, energy-efficient illumination. Its comprehensive optic range enables precise light control on the ground while fully complying with the most stringent light pollution regulations.
Designed to integrate into open and interoperable connected lighting ecosystems, CITEA supports smart city strategies by improving energy efficiency, urban responsiveness and safety in public spaces.

A circular, standardised design that reduces TCO

CITEA goes beyond standard modularity by relying on the CR-KIT, a fully standardised, interchangeable gear unit shared across our latest luminaire ranges. This approach drastically simplifies maintenance activities, spare part logistics and upgrades, delivering a level of circularity and cost control unmatched by conventional urban luminaires.

A benchmark in lighting performance

Offering high lumen packages and superior efficiency compared to market standards, CITEA maximises lighting performance while minimising energy consumption. Cities achieve better visibility and long-term energy savings, without compromising on performance.

Open and interoperable connectivity

CITEA supports standard NEMA and Zhaga connectivity while prioritising true interoperability. Cities have complete freedom to choose their smart lighting platform and evolve their strategy over time, as well as integrating future applications, without being locked into a proprietary ecosystem.

Precision lighting

Available with a large selection of optics, CITEA delivers powerful yet precisely controlled lighting (no light strays upwards). Thanks to its improved backlight technology, the light flux is directed exactly where needed, preventing intrusive light in sensitive or inhabited areas, and ensuring full compliance with the strictest environmental and local regulations.

One luminaire, multiple lifecycles: a smarter approach to circular lighting

Designed to help cities secure long-term value for their lighting investments, CITEA places circularity at the core of its architecture. Thanks to the CR-KIT, a fully standardised and interchangeable gear unit shared across the latest Schréder luminaire range, cities can maintain, upgrade and evolve their lighting infrastructure without replacing entire luminaires.
This approach drastically simplifies spare part management, reduces maintenance interventions and extends the service life of installations. It lowers total cost of ownership, limits resource consumption and enables cities to adapt to new technologies and regulatory requirements at their own pace.

Reveal your public spaces through lighting

With CITEA, lighting reveals and enhances public spaces, both by day and at night. Beyond its performance, CITEA is a strong aesthetic addition to your urban landscapes. Its timeless design and refined curves are available with a choice of poles, brackets and mounting options (post-top, side-entry, suspended or adjustable), offering design flexibility to perfectly match your environment and aesthetic requirements.

Characteristics

General Information

Compliance

CE mark

UKCA marking

ENEC certified

ENEC+ certified

Zhaga-D4i certified

Technical future proof

Easy replacement of the photometric engine and electronic assembly

Electrical information

Electrical class

Class I EU

Class II EU

Nominal voltage

220-240V – 50-60Hz

Control protocol(s)

1-10V

DALI

Control option(s)

Bi-power

Remote management

AmpDim

Custom dimming profile

Socket option(s)

Zhaga (optional)

NEMA 7-pin (optional)

Associated control system(s)

Schréder EXEDRA

Sensor(s)

PIR (optional)

Performance

Luminaire output flux (lm)

600 -

25600

Power consumption (W)

10.0 -

171.0

Luminaire efficacy - up to (lm/W)

185

Optical information

LED colour temperature

Warm White 722

Warm White 727

Warm White 730

Warm White 830

Neutral White 740

Colour rendering index (CRI)

Upward Light Output Ratio (ULOR)

ULR

ULR may be different according to the configuration. Please consult us.

ULOR may be different according to the configuration. Please consult us.

Housing and finish

Housing

Aluminium

Optic

PMMA

Protector

Tempered glass

Tightness level

IP 66

Impact resistance

IK 10

Lifetime

All configurations

100,000h - L95

Lifetime may be different according to the size/configurations. Please consult us.

Dimension and mounting

Dimensions and mounting

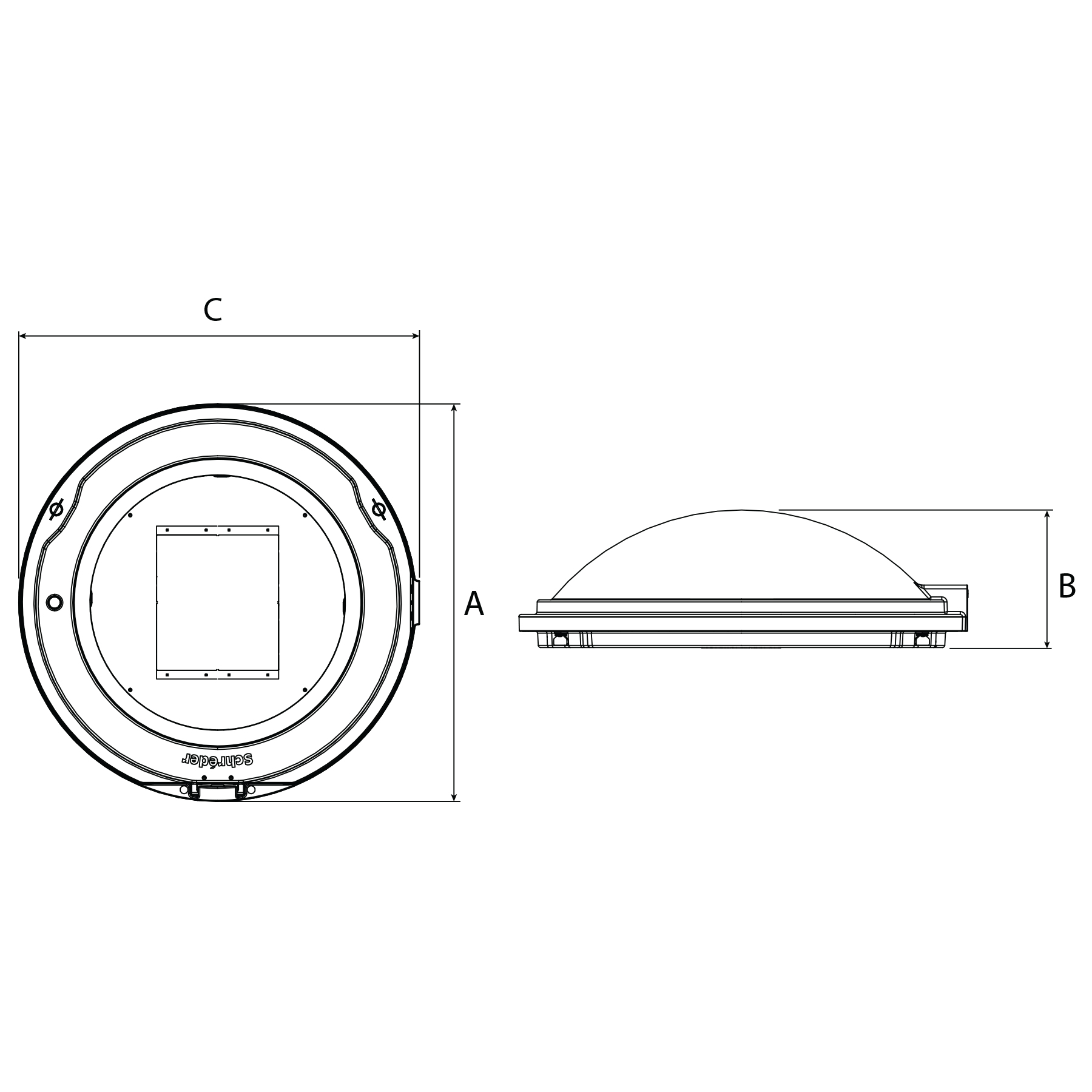

AxBxC (mm | inch)

595x185x597 | 23.4x7.3x23.5

Weight (kg | lbs)

14.0 | 30.8

Mounting possibilities

Catenary

Suspended 1’’ gas male

Surface mounting

Side-entry penetrating – Ø48mm

Side-entry slip-over – Ø60mm

Suspended ¾’’ gas male

Direct mounting on poles

Post-top slip-over – Ø60mm

Suspended 1’’ gas female

Download all specs

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Discover Schréder EXEDRA

Control systems

Control options for CITEA

Designed for connected cities, CITEA is ready to integrate into open and interoperable lighting networks. Compatible with NEMA 7-pin or up to 2 Zhaga sockets, it enables smart lighting deployments with precise control over energy consumption and performance.

Control link

All Control Options

View online

Create the perfect harmony with our poles and brackets

Our diverse selection ensures the perfect match for Schréder luminaires, enabling you to tailor your ensemble to the unique needs of your project. From sleek modern designs to classic styles, our poles and brackets offer a wide range of options. Choose Schréder for a harmonious blend of form and function, creating lighting solutions that stand out and enhance any urban landscape.

Check your options

Installation and Maintenance

Create various settings

CITEA offers versatility of installation thanks to a multitude of mounting options. Side-entry, post-top, suspended, direct, adjustable or fixed, CITEA adapts to the operational requirements of any urban lighting project.
Maintenance and access to the internal gear unit is tool-free.
