AXIA 3 EVO SE

Cost-effective LED solution for street lighting

Description

Looking for a user-friendly, cost-effective lighting solution without sacrificing performance? Discover AXIA 3 EVO SE. Equipped with the latest lighting technologies, this street luminaire delivers the right light to meet your functional street lighting needs while considerably reducing energy costs. With its compact, user-friendly design, AXIA 3 EVO SE helps towns and cities enhance their nightlife in a durable way. Discover how AXIA 3 EVO SE can help you generate significant savings while providing superior lighting performance.

  • Small yet powerful
  • AXIA 3 EVO SE is a lightweight luminaire offering high performance.
    Equipped with the ProFlexTM photometric engines designed to increase lighting performance, AXIA 3 EVO SE delivers safe, comfortable lighting with minimised energy consumption. With AXIA 3 EVO SE, performance goes with low consumption.

  • Your partner for outdoor street lighting
  • Outdoor street luminaires can be subject to harsh conditions such as stone-throwing, heavy rain and solar rays. AXIA 3 EVO SE’s compact, robust design provides high levels of tightness and shock resistance, making it the ideal partner for your basic street lighting projects. Made of UV-resistant polypropylene, AXIA 3 EVO SE is capable of withstanding any road and city street environment.

  • Easy to handle
  • AXIA 3 EVO SE is designed for easiness. Its compact, light design allows it to be easily installed without removing its cover. To optimise the light distribution, the luminaire integrates inclination steps, allowing it to be orientated onsite from -15° to 5°.

  • Connected-ready
  • AXIA 3 EVO SE is a connected-ready lighting solution that can be optionally equipped with a NEMA or a Zhaga socket. This feature enables you to remotely control your outdoor lighting networks for maximised cost and energy savings. The control node can also be associated with a motion sensor, to adapt the light to the exact needs of the moment and to prevent unnecessary light pollution.

User-friendly solution for cost-effective street lighting

AXIA 3 EVO SE is a high-performance street luminaire designed to meet your outdoor lighting requirements, with rapid return on investment. Its optimised, user-centric design makes it a lightweight, easy-to-install solution, while its advanced LED technology ensures long-lasting, energy-efficient illumination. Perfect for enhancing street lighting and reducing energy costs, AXIA 3 EVO SE combines cutting-edge efficiency with durability, offering the ideal balance between performance and sustainability.

Characteristics

Recommended installation height (m)
4.0 -
12.0
Electrical class
I
II
Nominal voltage
Control protocol(s)
Associated control system(s)
Sensor(s)
Luminaire output flux (lm)
600 -
7000
Power consumption (W)
6.0 -
52.0
Luminaire efficacy - up to (lm/W)
196
Colour rendering index (CRI)
70
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult us.
ULR may be different according to the configuration. Please consult us.
Housing
Polypropylene
Protector
Polycarbonate (with integrated lenses)
Tightness level
Impact resistance
Lifetime may be different according to the size/configurations. Please consult us.
Operating temperature range (Ta)
-30°C up to +55°C / -22°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

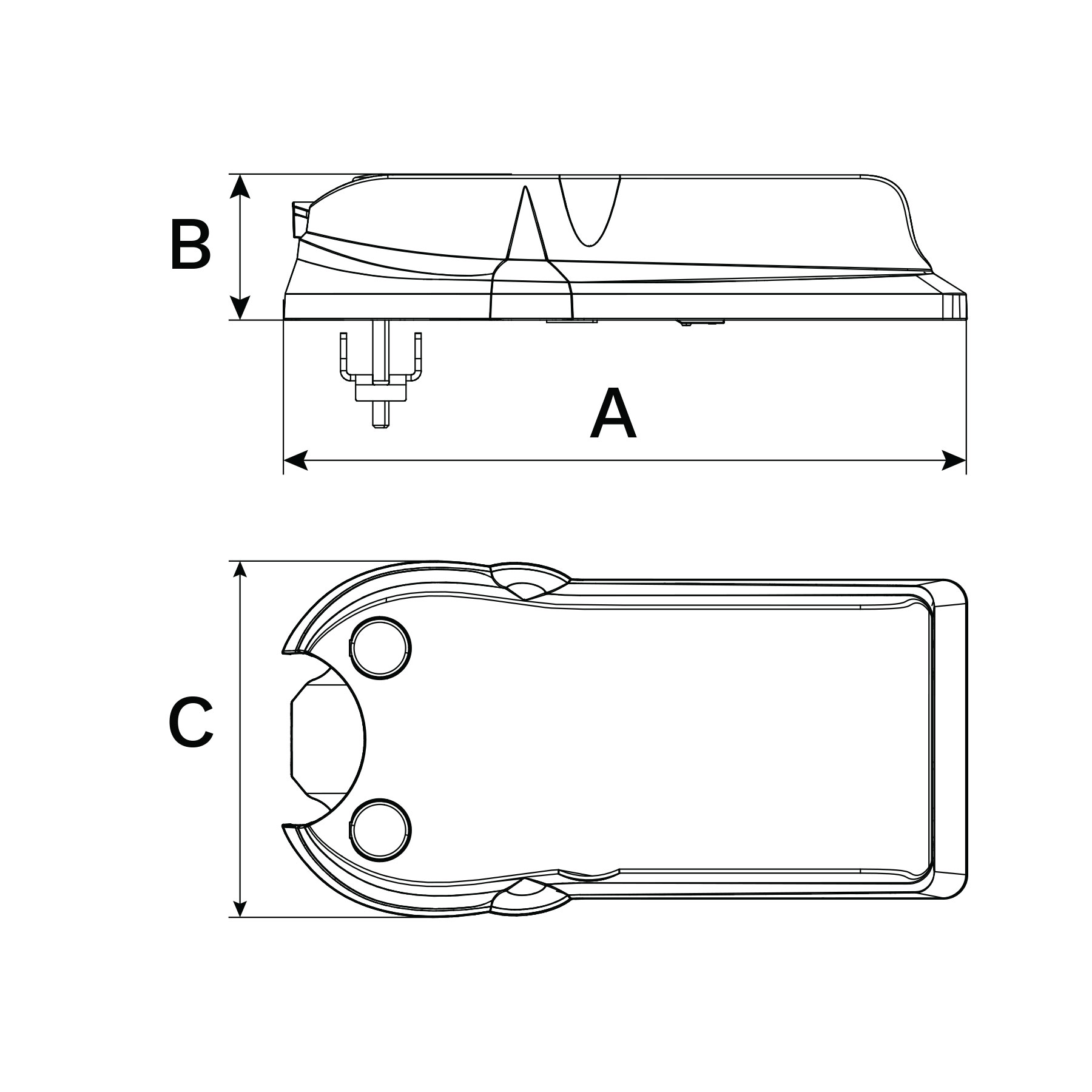

AxBxC (mm | inch)
339x72x176 | 13.3x2.8x6.9
Weight (kg | lbs)
2.2-3.2 | 4.8-7.0
Mounting possibilities
Side-entry slip-over – Ø60mm
Side-entry slip-over – Ø48mm
Side-entry slip-over – Ø42mm

Video file

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Control systems

Control options for AXIA 3 EVO SE

The following dimming options are available for AXIA 3 EVO SE:
• Custom dimming profile
• Bi-power
• 1 – 10V
• DALI
• AmpDim

This luminaire can optionally be delivered with a NEMA or a Zhaga socket, making it a real connected-ready solution. The control node can also be associated with a motion sensor for greater lighting adjustability.

Control link

Installation and Maintenance

Easy and fast installation

AXIA 3 EVO SE is available with side-entry fixing adapted for Ø42-60mm spigots. The inclination angle can be adjusted onsite in increments of 5°: -15° to +5°.
