Kazu

Efficient urban luminaire offering two distinctive designs

Description

Combining a stylish and minimalistic design with the energy efficiency of LED technology, Kazu provides maximum energy savings, flexibility and sustainability for lighting urban roads, residential streets, bike paths, squares, pedestrian areas or bridges.
This outdoor LED luminaire benefits from excellent thermal management, maintaining performance over a long lifespan. Ready for your smart city ambitions, Kazu can be combined with various control solutions for further energy savings. Local authorities care for their citizens by providing infrastructure that ensures safety and well-being.
This urban lamppost creates safer and attractive public places both by day and by night. Moreover, Kazu is dark-sky compliant and a wildlife-friendly urban lighting solution.

Minimalistic and modern design

Inspired by the Kaza hat worn by the Samurai, Kazu is an urban luminaire designed around the compactness of the LED engine by Creare Domus to provide a minimal and modern shape.
It offers two distinctive designs: one with a flat protector (standard version) and one with a shaped protector (comfort version) providing a curved aesthetic outline.

Resists hot conditions

The Kazu street luminaire benefits from superior thermal management to offer reliable performance in hot climates.
The curved cooling fins optimise heat extraction and prevent dirt from staying on the luminaire.

Dark-sky compliant to protect the environment

Fauna and flora can suffer from a high light intensity and excessive lighting over time. The high-performing light distributions and the flat protector of Kazu meet dark-sky specifications (0% ULOR) by focusing the light only where it is needed.
This protects the wildlife and the environment, as well as the drivers, cyclists and pedestrians, who benefit from high visual comfort.

Vandal proof

In public areas where there is little activity, vandalism might occur. With its robust design (up to IK 10), Kazu is ready to face this threat to maintain public lighting over time.

Save time on installation

The Kazu luminaire can be supplied pre-wired to save time during installation. With virtually no maintenance required, Kazu guarantees long-lasting performance and significant savings.

Characteristics

General Information

Recommanded installation height (m)

3.0 -
6.0

Electrical information

Electrical class

Power factor (at full load)

0.90

Surge protection (kV)

20
10

Control protocol(s)

Socket option(s)

Associated control system(s)

Performance

Luminaire output flux (lm)

1059 -
8410

Power consumption (W)

14.0 -
79.0

Luminaire efficacy - up to (lm/W)

129

Optical information

LED colour temperature

Colour rendering index (CRI)

70
80

Upward Light Output Ratio (ULOR)

0%

Housing and finish

Housing

Aluminium

Optic

Protector

Polycarbonate

Tightness level

Impact resistance

IK may be different according to the size/configurations. Please consult us.

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)

-30 °C up to +55 °C / -22 ° F up to 131 °F
Depending on the luminaire configuration. For more details, please contact us.

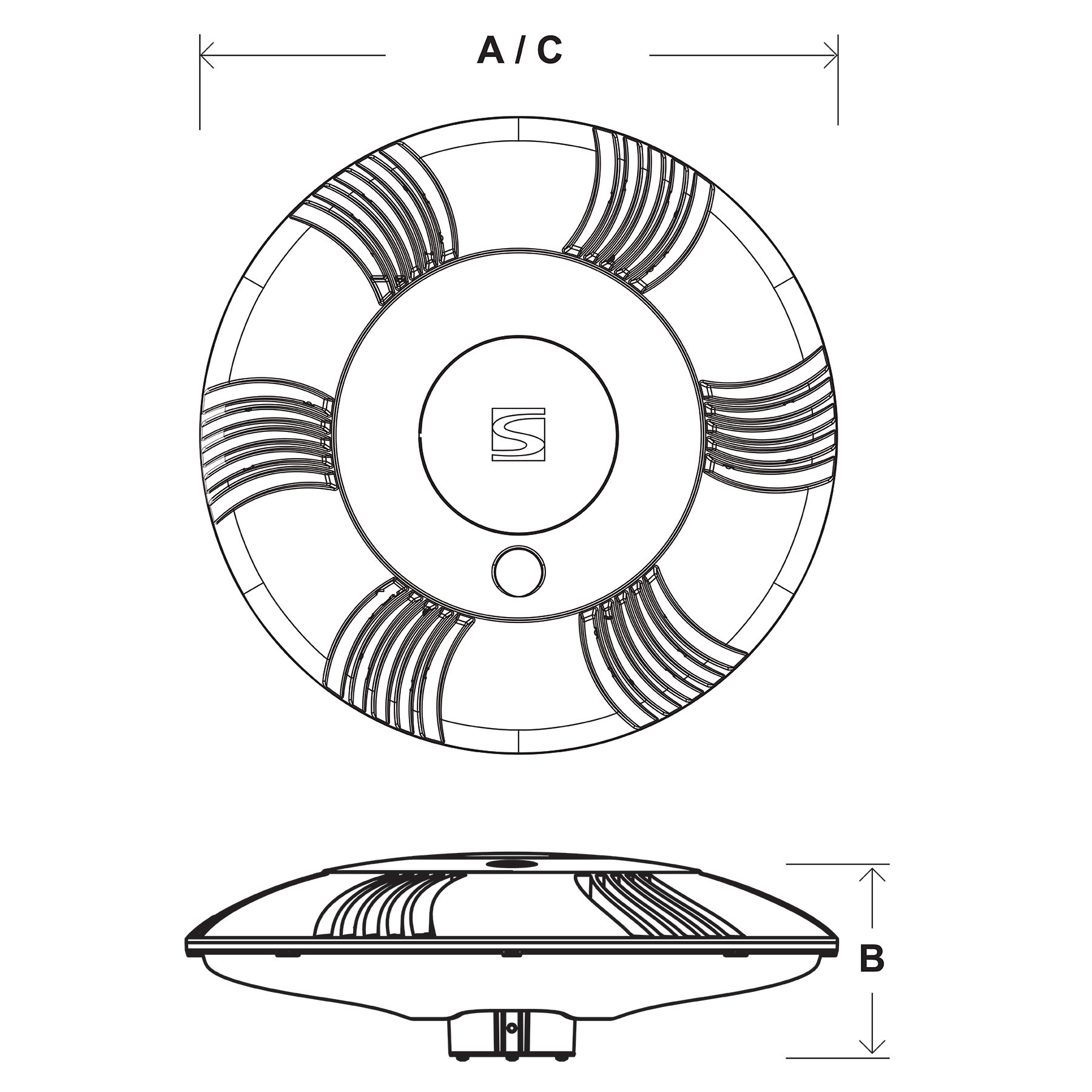

Dimensions and mounting

AxBxC (mm | inch)

525x160x525 | 20.7x6.3x20.7

Weight (kg | lbs)

8.7 | 19.1

Control systems

Control options for Kazu

The Kazu street luminaires have the following dimming options:
· Custom dimming profile
· DALI
· 1-10V
· Remote management

The Kazu luminaire in combination with an Owlet control system offers a high performing lighting solution with energy savings of up to 85% compared with luminaires fitted with traditional light sources. This efficiency lowers its payback time and contributes to a responsible use of natural resources.

Installation and Maintenance

Post-top mounting

The Kazu luminaire offers slip-over mounting onto Ø60mm or Ø76mm spigots by tightening 6 screws.

Accessories and versions

Standard and Comfort versions

Two different versions of the Kazu are available; one with a flat polycarbonate protector and one with a symmetric dome-shaped protector. Both are characterised by a high tightness level and high impact resistance to maintain performance over time.
