HAPILED

Elegance and comfort for a warm ambiance

Description

HAPILED is the perfect urban lighting alternative to the inefficient opal sphere luminaires. It ensures safety, comfort and energy savings for various environments through the LensoFlex®2 photometrical engine, which offers a wide range of light distributions, both symmetrical and asymmetrical. This versatility makes HAPILED the perfect choice for a series of urban lighting applications, from residential streets, squares, narrow or urban roads to bike paths and car parks. Designed by Michel Tortel, this elegant post-top luminaire blends into any city or architectural environment by day and by night, creating a pleasant ambiance for residents and visitors.

An aesthetic solution for towns and cities

With its refined and pure design, HAPILED enhances spaces both by day and by night.

HAPILED guarantees high visual comfort

The association of an internal diffusor and a striated protector ensures a high visual comfort to pedestrians, cyclists and motorists.

Easy and quick installation

HAPILED is supplied pre-wired to facilitate its installation. You only need to tighten six screws on the mounting part and to connect the cable at the bottom of the pole. Easy and quick!

The right light any place, any time

HAPILED can provide light-on-demand scenarios with motion detection (3 types of detection). In places with little activity at night, the lighting levels can be dimmed most of the time and only increased when people use the environment, providing safety and comfort while maximising the energy savings.

Meeting city challenges

Quality lighting, low maintenance and high resistance to harsh urban environments thanks to a high IP and IK rating, the HAPILED is ideal to light all urban areas, from residential streets, squares, narrow or urban roads to bike paths and car parks in a city.
Its ability to meet the challenges of various applications make it a true asset for your city.

Characteristics

General Information

Recommended installation height (m)
3.5 -
5.0

Electrical information

Electrical class
Nominal voltage
Control protocol(s)
Associated control system(s)
Sensor(s)

Performance

Luminaire output flux (lm)
700 -
9800
Power consumption (W)
11.0 -
75.0
Luminaire efficacy - up to (lm/W)
141

Optical information

Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
<4%

Housing and finish

Housing
Aluminium
Optic
Protector
Polycarbonate
Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
-30 °C up to +35 °C / -22 °F up to 95°F
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

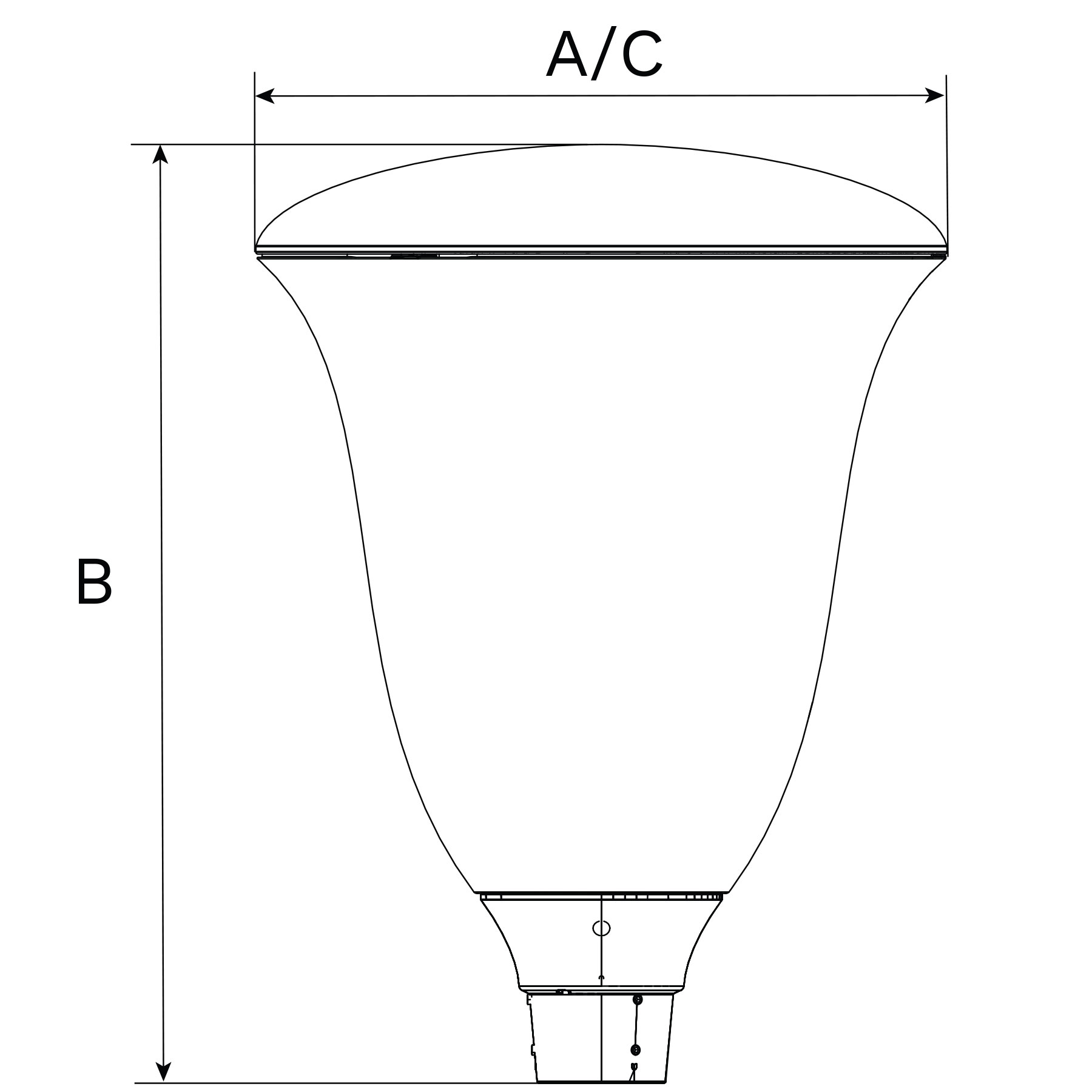

AxBxC (mm | inch)
410x556x410 | 16.1x21.9x16.1
Weight (kg | lbs)
5.0 | 11.0
Mounting possibilities
Post-top slip-over – Ø60mm

Control systems

Control options for HAPILED

The following dimming options are possible for the HAPILED decorative luminaire:
· Custom dimming profile
· Bi-power
· 1- 10V
· DALI
· Remote management

Installation and Maintenance

Standard mounting

HAPILED is designed for post-top mounting on a Ø60mm with a 70mm long spigot. The fixation is completed by tightening 6 M6 screws.
HAPILED is designed to meet our FutureProof concept. Both the photometric engine and the electrical power supply can be replaced on-site to take advantage of any future technological developments.
The top cover of the HAPILED is composed of injected aluminum and can be removed by loosening 3 M5 screws.
