FLEXIA QUERCUS

Explore your creativity!

Experience

Description

Create an unique ambiance for people living and visiting your spaces with FLEXIA QUERCUS. This luminaire brings a hint of nature into the heart of your city with its plant-like form that enhances various urban spaces.
Create dramatic lighting scenarios with the Croma colour filters and give your city its very own identity.
Compatible with various suspended mounting options, FLEXIA QUERCUS blends into all urban spaces.
The FLEXIA QUERCUS luminaire is a game-changer for cities and architects willing to raise urban and outdoor activities to a higher level. With FLEXIA QUERCUS, design is experience.

Create your own lighting scenario

The FLEXIA QUERCUS luminaires can be customised with colour filters to create a special atmosphere for your events or your infrastructure. Highlight the DNA of your city or company with FLEXIA QUERCUS!

Open and connected-ready solution

To remain as open and interoperable as possible, FLEXIA QUERCUS is available with both NEMA or Zhaga sockets and complies with the ZD4i standard.

Consistency for all urban applications

FLEXIA QUERCUS is part of the FLEXIA range and shares the same technical architecture. This standardisation of components enables an easier and more cost-effective management of spare parts.

Leading the way for a more circular economy

Built with recyclable materials and with an architecture designed for easy service and refurbishment (tool-free opening, cabling and LED engine removal), FLEXIA QUERCUS is a role model for a circular economy.

FlexiWhite: the right colour temperature. Always.

Choosing the right colour temperature is never an easier decision. A cold white light optimises performance while a warmer one is more favourable for people and nature. What if you didn't have to choose? The Schréder FlexiWhite solution offers you the freedom to always choose the right colour temperature. With FlexiWhite, you have the flexibility to provide the right level of light with the right colour temperature in the right place and at the right time.

Characteristics

General Information

Recommended installation height (m)

4.0 -

10.0

Compliance

ENEC certified

ENEC+ certified

UL certified

Dark Sky friendly lighting (IDA certification)

Zhaga-D4i certified

RCM mark

UKCA marking

Meets IDA Dark Sky requirements when fitted with a clear protector

Electrical information

Electrical class

Class 1 US

Class I EU

Class II EU

Nominal voltage

120-277V – 50-60Hz

220-240V – 50-60Hz

Control protocol(s)

DALI

1-10V

Control option(s)

Custom dimming profile

Photocell

Remote management

Bi-power

AmpDim

Socket option(s)

Zhaga (optional)

NEMA 7-pin (optional)

Associated control system(s)

Schréder EXEDRA

Performance

Luminaire output flux (lm)

600 -

23500

Power consumption (W)

7.8 -

174.0

Luminaire efficacy - up to (lm/W)

171

Optical information

LED colour temperature

Warm White 722

Warm White 727

Warm White 730

Neutral White 740

Colour rendering index (CRI)

Upward Light Output Ratio (ULOR)

<7%

ULR

<8%

Meets IDA Dark Sky requirements when fitted with LEDs of 3000K or less.

ULOR may be different according to the configuration. Please consult us.

ULR may be different according to the configuration. Please consult us.

Housing and finish

Housing

Aluminium

Optic

PMMA

Protector

Polycarbonate

Finish

Polyester powder coating

Tightness level

IP 66

Impact resistance

IK 09

Lifetime

All configurations

100,000h - L95

Lifetime may be different according to the size/configurations. Please consult us.

Dimension and mounting

Dimensions and mounting

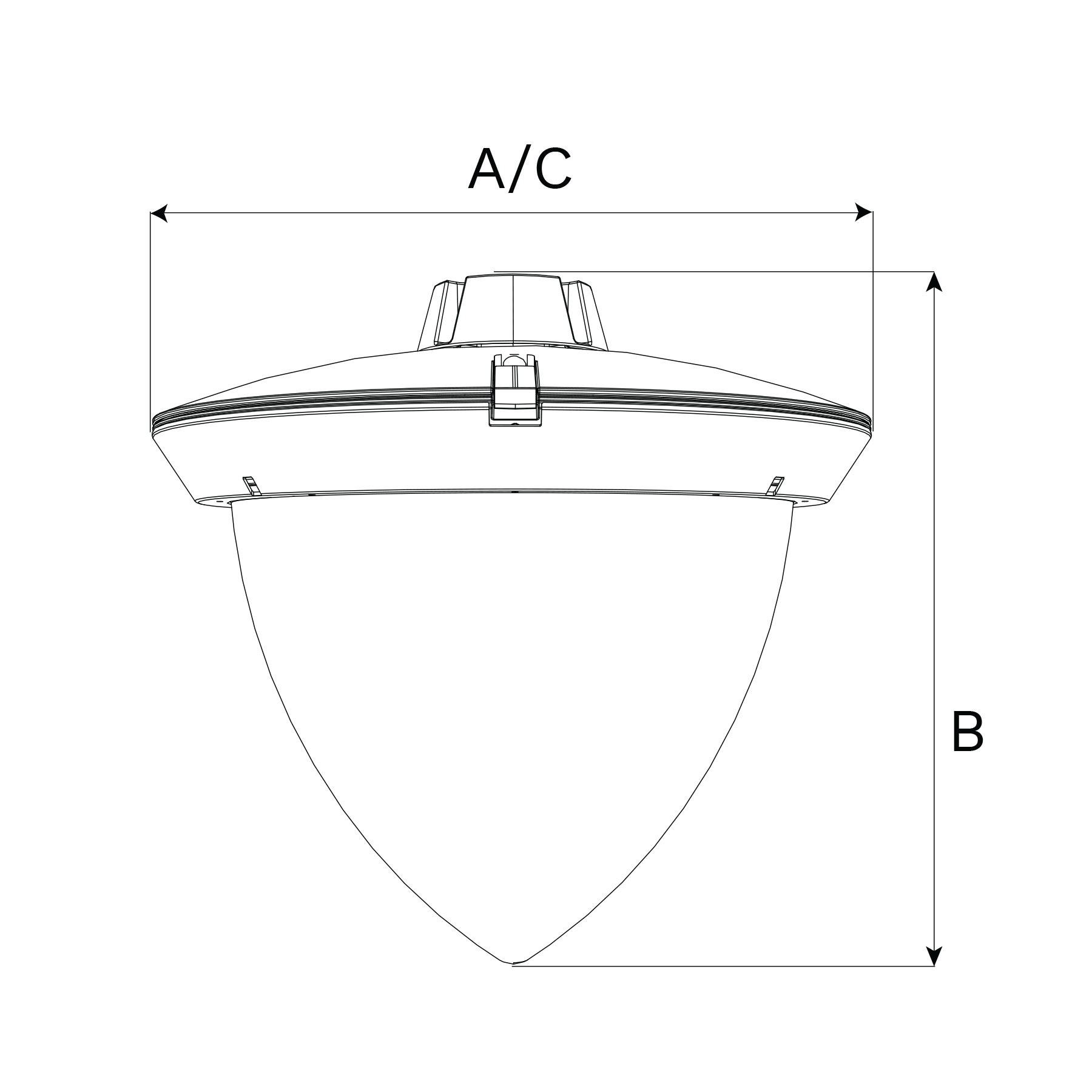

AxBxC (mm | inch)

FLEXIA QUERCUS MIDI : 504x490x504 | 19.8x19.3x19.8

FLEXIA QUERCUS MAXI : 610x693x610 | 24.0x27.3x24.0

Weight (kg | lbs)

FLEXIA QUERCUS MIDI : 11.5 | 25.3

FLEXIA QUERCUS MAXI : 16.8 | 37.0

Mounting possibilities

Suspended mounting

Side-entry slip-over – Ø60mm

Side-entry penetrating – Ø48mm

Surface mounting

Download all specs

Control systems

Control options of FLEXIA QUERCUS

FLEXIA QUERCUS offers the following dimming/control options:
• Custom Dimming Profile
• 1 - 10V
• DALI
• Remote management
• Bi-power
• AmpDim

NEMA or Zhaga, Schréder gives you complete control. We don’t want to lock you in with a proprietary control system. This is why FLEXIA QUERCUS not only offers one but two connectivity options based on industry standards. To remain as open and interoperable as possible, FLEXIA QUERCUS is available with NEMA or Zhaga sockets and is ZD4i certified. The FLEXIA QUERCUS control options enable you to connect your lighting scheme and to be Smart City ready.

Control link

All Control Options

Installation and Maintenance

Suspended mounting

FLEXIA QUERCUS is available with various suspended mounting options, fixed or orientable.

Side-entry mounting

FLEXIA QUERCUS is also designed for side-entry. Its adaptive technology makes FLEXIA QUERCUS compatible with various mounting designs such as 60mm diameter enveloping fixation or 48mm penetrating spigot, with and without swiveling.

Poles and Brackets

FLEXIA QUERCUS+SOFIA: the perfect match

FLEXIA QUERCUS takes advantage of a dedicated range of brackets to provide elegant solutions for multiple configurations. The SOFIA brackets include single, double, wall and side variants to meet the requirements of your applications.

Accessories and versions

Croma coloured filters

Communities love to share meaningful moments and celebrate special events. With the Croma colour filters, it only requires 10 seconds, without any tools, for FLEXIA QUERCUS to change colours and create engaging public spaces, boosting social interaction and fostering a sense of spirit and pride.
Who said luminaires were boring?

Diffuse protector
