RIVARA

A pure design with all the advantages of the latest LED technology

Description

With its linear design, RIVARA is a contemporary, elegant luminaire particularly suited to urban landscapes. Adapted to multiple configurations, RIVARA can be installed on single, double or wall brackets.
Thanks to its wide range of light distributions, RIVARA brings efficiency, comfort and reliable performance to urban streets, residential zones, squares and other pedestrian areas.
More than a sophisticated luminaire, RIVARA can integrate the latest control technologies to offer an elegant and connected solution.

Proven technology

The RIVARA urban luminaire is equipped with second-generation LensoFlex®2 photometric engines that have been specifically developed for lighting spaces where the well-being and safety of people using the environments are essential. The light distribution and lumen output are adapted according to the requirements of the applications.

Responsible use of energy

The RIVARA street light integrates cutting-edge technology. The combination of LEDs, a driver working within a constant flux system and a dimming system makes it possible to achieve significant energy savings.

FutureProof outdoor street light

Using the most modern technology, the RIVARA luminaire has been designed to meet the FutureProof concept. The photometric engine and electronic compartment can be upgraded at any time throughout the luminaire’s lifetime to take advantage of any future technological developments.

Connected-ready city lighting

The RIVARA urban lighting is available with NEMA or Zhaga sockets and is ZD4i certified, to operate in an open and interoperable network.

Save energy with the RIVARA street light.
By using LED technology and dimming features, RIVARA supports your sustainable policy.
A Zhaga-D4i certified luminaire

As a founding member of the Zhaga consortium, Schréder has participated in the creation of Zhaga-D4i certification program and the initiative of this group to standardize an interoperable ecosystem. The D4i specifications take the best of the standard DALI2 protocol and adapt it to an intra-luminaire environment.
As Zhaga-D4i certified luminaire, RIVARA complies with all the criteria including mechanical fit, digital communication, data reporting and power requirements within a single luminaire, ensuring plug-and-play interoperability of luminaires and peripherals such as connectivity nodes.

Characteristics

General Information

Recommended installation height (m)
4.0 -
6.0

Electrical information

Electrical class
Nominal voltage
Surge protection (kV)
10
Control protocol(s)
Associated control system(s)
Sensor(s)

Performance

Luminaire output flux (lm)
800 -
6200
Power consumption (W)
9.7 -
53.0
Luminaire efficacy - up to (lm/W)
117

Optical information

Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%

Housing and finish

Housing
Galvanised steel
Optic
Protector
Tempered glass
Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
-30°C up to +55°C / -22°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

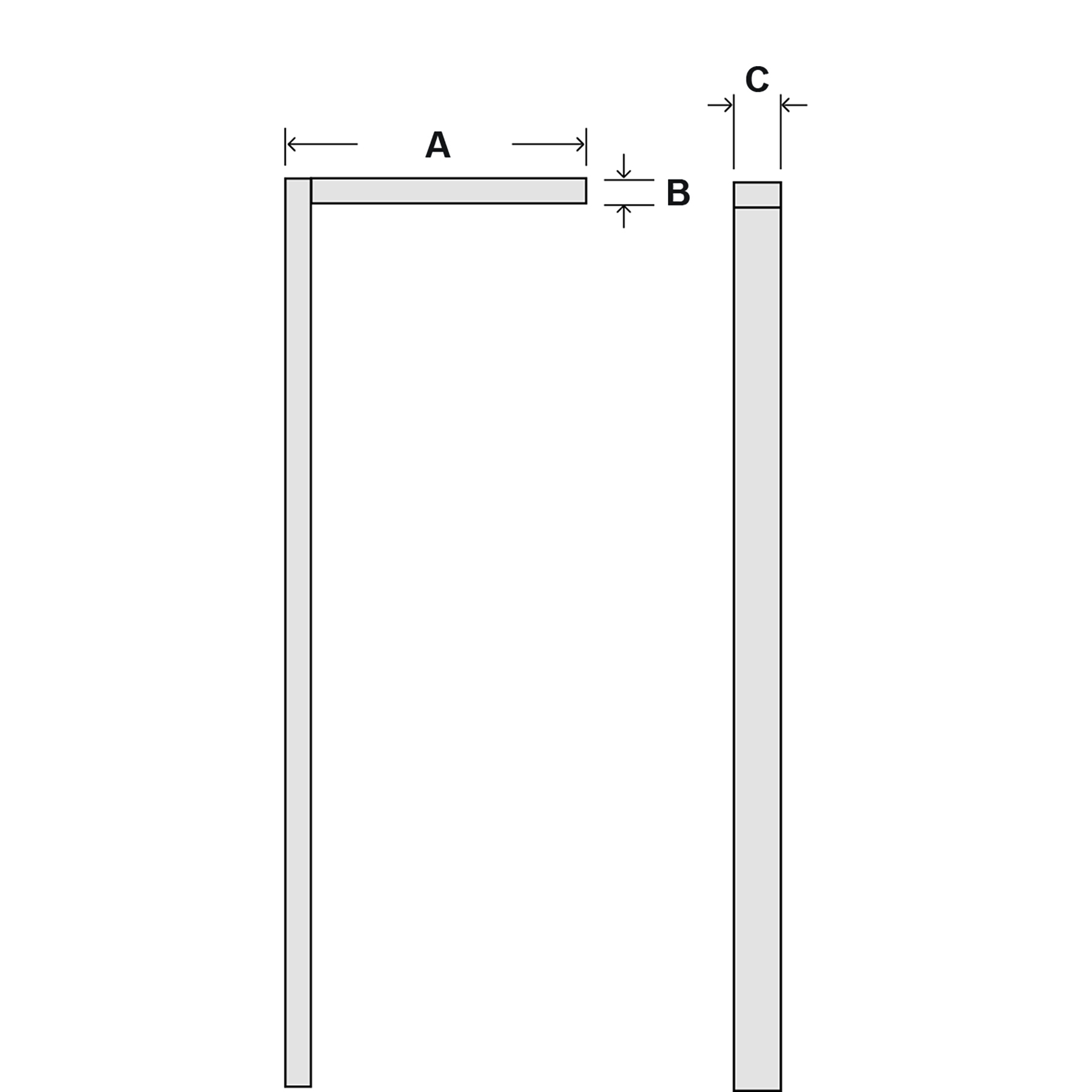

AxBxC (mm | inch)
RIVARA - 1100x100x180 | 43.3x3.9x7.1
RIVARA BOLLARD - 350x100x180 | 13.8x3.9x7.1
Weight (kg | lbs)
RIVARA - 16.0 | 35.2
RIVARA BOLLARD - 23.5 | 51.7
Mounting possibilities
On a dedicated range of poles/brackets

Control systems

Control options for RIVARA

The following dimming/control options are available for RIVARA:
• Bi-power
• Custom dimming profile
• AMPDIM
• 1-10V
• DALI
• Remote management
• Bluetooth

Installation and Maintenance

Quick installation

TheThe RIVARA street light is available in two different configurations, either on a pole with a single or double bracket or a wall bracket. Delivered pre-wired, RIVARA is easy to install. The gear tray and sealed LED modules are separated to facilitate maintenance operations.

Poles and Brackets

Columns and brackets

The RIVARA street light is proposed with a single or double bracket to be mounted on dedicated rectangular poles. A wall bracket is also available to maintain aesthetic consistency in areas where columns cannot be installed.
